City of Toronto - Dufferin Jog Elimination - Portal Cladding

Location: Toronto, Ontario

Designer/Architect: City of Toronto - Technical Services

Duration: Apr 2009 - Jun 2011

Scope: Soheil Mosun Limited was contracted to design, fabricate and install the cladding support system and the stainless steel portal cladding at the Dufferin Street Jog Elimination project in downtown Toronto.

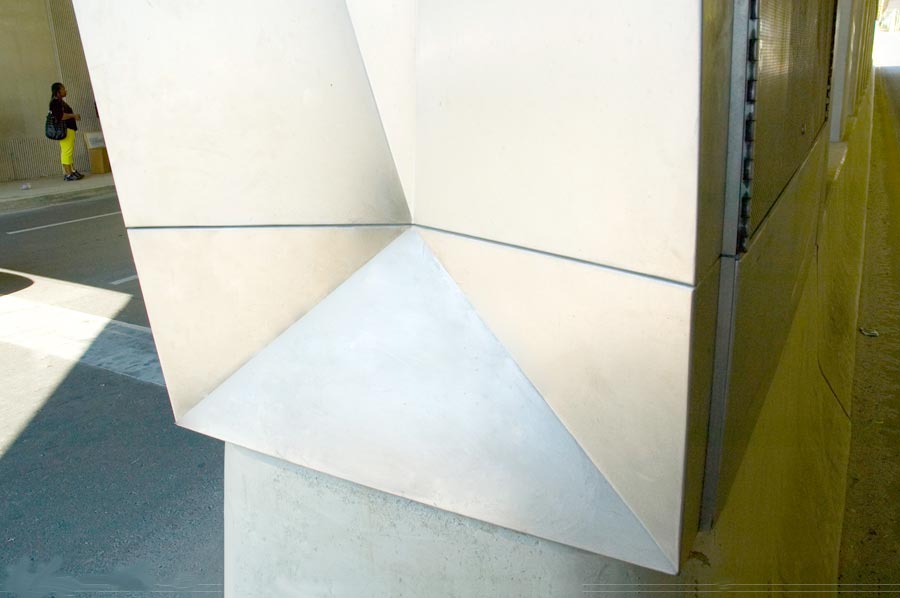

Highlights: The supporting structure beneath the cladding is comprised of galvanized steel angle tube clamped without driling or welding to the existing bridge structure. All hardware fastening is stainless steel. The exterior cladding is alloy 316 exterior high grade 16 Gauge stainless steel with a non-directional orbital finish. Cladding is mechanically fastened and welded to the underlying framework with no visible fasteners. The cladding is formed in a diamond shaped angular shape in both concave and convex formation. Perforated access panels wrap to the inside of the underpass and elegantly hide the various mechanical necessities while allowing for water drainage.
